Search by tip series

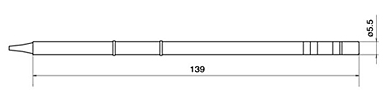

T12 Series Soldering Tips (Standard Type)
T12 Series is available in North America & EU.
This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece.
It is used for drag soldering and pre-tinning of lead wires.
All-round type which can be used from any direction and is easy to hold at any position.
Possible to solder any surface from small to large.
This type has a shape like a flat-blade screwdriver and is capable of soldering by applying the tip in 2 ways: line and face.
The width (size of tip) suitable for the workpiece can be selected, and it can be used for any soldering work.
This type has a thin conical end and is an ultrafine tip which is best suited for soldering at narrow pitches, etc.
It is the best for soldering micro components such as 0603, etc. and for repairing high-density-mounting P.W.Bs. such as in cellular phones, etc.
This type differs from Shape B and I by bending the tip end and is capable of soldering by applying the tip in 2 ways: face and point.
It is used for drag soldering and correction of bridging.
This type has a shape like a knife and is capable of soldering by applying the tip in 3 ways: line, face and point. It is used for soldering at narrow pitches, correction of bridging and drag soldering.
This type has a groove at the tip end.
It is suitable for removing ICs.
