Select tip shape
How to use Narrow-pitch Soldering Type : Shape S and examples
This shape is derived from Shape B, C, D and I, which is used for soldering tiny tips at the narrow pitches. Try Shape S as well as Shape I or Shape K if the tip end of Standard type touches the nearby ICs. * ‘900M-T-S10’ and ‘900M-T-S11’ are not suitable for soldering at narrow pitches because they belong to Shape C group which has the special angle cut (55 degree) at the tip end.This type has the tiered design: the nearer to the tip end, the thinner the diameter.
Soldering tiny chip parts such as 0603

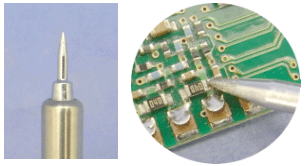

 | Shape SB : Tip end size R0.2 The special shape of fine tip end makes it easy to solder a tiny chip. |

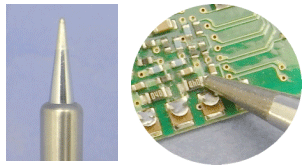

 | Shape S : Tip end size R0.5 |
Soldering at the narrow pitches
 | The special shape of fine tip end prevents its tip end from touching nearby chips.
|
