N2 System

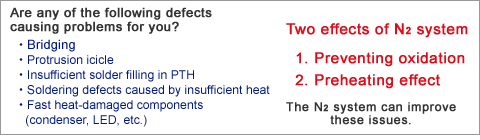

Two effects of N2 system reduce soldering defects.

N2 System Effect
N2 System Effect

N2 System mechanism

Nitroge gas is heated inside soldering iron and is exhausted from the tip end of soldering iron. It effects preheating P.W.B. and reduces soldering defects.

The following page offers the illustrated structure of N2 system and the temperature of heated nitrogen gas N2 System structure

Required equipments

HAKKO FX-791HAKKO FX-780

N2 Flowmeter

N2 generator

N2 soldering iron varies depending on your HAKKO soldering station.
The combination examples lead you to the required equipments and the related products. N2 system required equipments
