FT-802 Thermal Wire Strippers

SKU: FT802


  • Thermal wire stripper for higher quality and more preciseness
  • Even very fine AWG 38 can be stripped with standard blades

FT802 Thermal Wire Stripper for higher quality and more preciseness

FT802 Thermal Wire Stripper  is sharp, precise, and effective

Thermal wire stripper FT802 Thermal Wire Stripper enables higher quality and more precise insulation stripping.
The performance that can strip insulation with no nick can meet the requirement of the latest aerospace industry and the medical industry that require s very high quality.

Thermal strip gives great sharpness.

FT802 Thermal Wire Stripper HAKKO UK - FT802 Thermal Wire Stripper
FT802 can strip the insulation of AWG 38 wire with no nick.Conventional wire stripper could make ragged edges of insulation or damage strands.

Due to the tweezers structure, the cutting edges are always aligned.

The blades can be securely fixed by making the frame with tweezers structure.

Due to the tweezers structure, the cutting edges are always aligned.

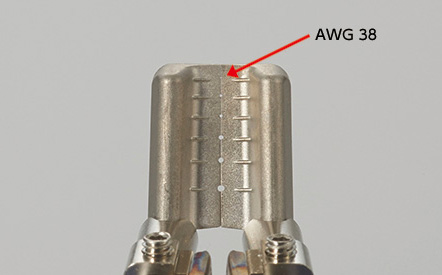

Even very fine AWG 38 can be stripped with standard blades.

Even very fine AWG 38 can be stripped with standard blades.

Blades are replaceable and a handpiece can be saved.

No need to replace a handpiece when blades get worn out.

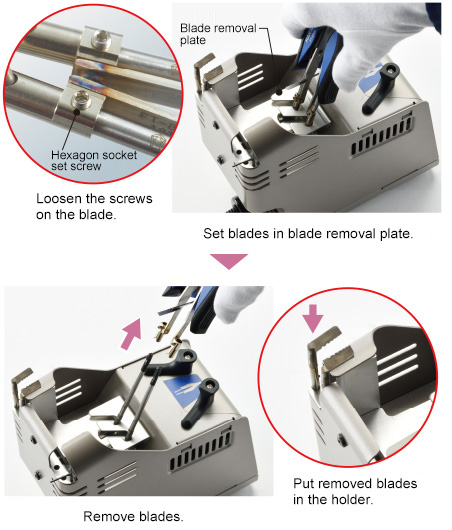

Blades can be easily replaced by using the hex-wrench (included in the unit) and the blade removal plate.
* The blades must be cool before replacement for safety.

Blades are replaceable and a handpiece can be saved.

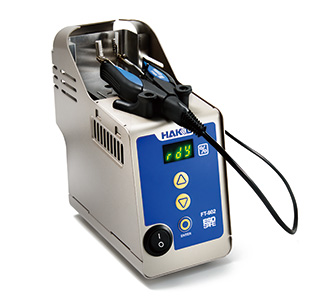

Space saving by the integration of station and holder

FT802 Thermal Wire Stripper

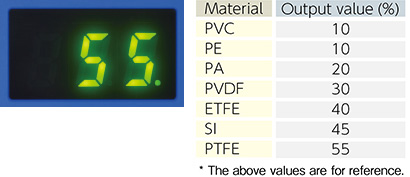

Output setting by the unit of 5%. Easy to set optimum output level as per material.

Output setting by the unit of 5%. Easy to set optimum output level as per material.

User-friendly display

Status of a handpiece at glance on the display.
User-friendly design for reduction of stress during the work.

FT-802A handpiece is correctly set in a holder.
Same as the output value
Ready to work immediately
Auto sleep function will activate after passing the set time.
HAKKO UK - FT802-22 Thermal Wire StrippersAuto sleep function is running.
Save output value approximately by 50%
Reduce blade oxidation and load on heating elements
Time to activate auto sleep function can be set by the unit of 1 minute (up to 30 minutes).

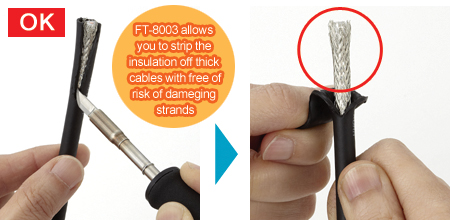

Option blade can handle even very thick cables

  • HAKKO FT8003 can strip insulation off thick leads that HAKKO FT8002 could not.

HAKKO FT-8003

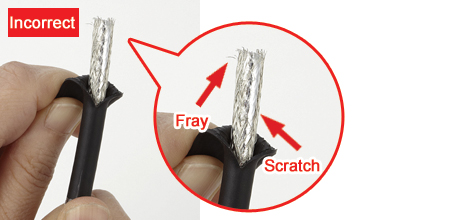

  • If cut with a knife blade
    It is not recommended to use a knife blade for cable stripping due to the high risk
    of cutting in the conductor or fraying shield that can result in ruining the cable.

knife cutter

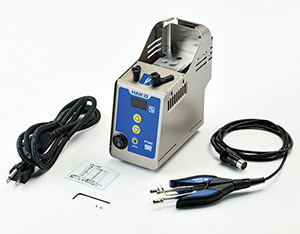

Packing List

Model No.Packing List
FT-802FT-802セット内容
Station (with wire material indicator seal), Handpiece FT-8004 (with lead adjuster), Hexagon socket set screw (M2.5 x 2.5 [qty 2]), Hexagon wrench (1.27 mm), Power cord, Instruction manual

Blades are not included with this product. The desired blades should be purchased separately.

Blades (G4 Series)

Specifications

Model No.FT-802
Power consumption76W

・Station

Output voltageAC 20V
Dimensions76(W)×159(H)×161(D)mm
Weight1.6kg

・Wire Stripper (FT-8004)

Power consumption72W (20V)
Cord length1.6m
Total length153mm
Weight47g

・Optional Wire Stripper (FT-8003)

Power consumption46W (24V)
Cord length<2m
Tip to ground resistance<2Ω
Tip to ground potential1.3mV
Total length155mm
Weight27g

* Length and weight for handpiece (w/o cord, blade)

Blade

For No.FT-8004

For No.FT-8004

How to use the BCM/CM and examples
G4-1601
G4-1601 Wire Stripper Blade
Straight
G4-1602
G4-1602 Wire Stripper Blade
AWG 18 to 28
G4-1603
G4-1603 Wire Stripper Blade
AWG 26 to 38

For No.FT-8003

G4-1601
G3-1601 Knife Type Blade

Replacement Parts

Part No.NameSpecifications
photo:FT8004-81FT8004-81HAKKO FT-800472W (20V)
photo:B5242B5242Lead adjusterwith o-ring, screw and stopper
photo:B5244B5244Blade removal platewith screws
photo:B5245B5245Handpiece holderwith sems screw M3×18, qty 2
photo:B5243B5243Sleeve assemblywith heat insulation covers

Option

Part No.NameSpecifications
photo:FT8003-81FT8003-81HAKKO FT-8003 conversion kit46W (24V)
photo:C5034C5034Iron holder
photo:C5034C5034Handpiece holder <w/ handpiece holder cover>with power-save function
photo:FT8003-82FT8003-02HAKKO FT-800346W (24V)
